     Panasonic DVD Recorder
        DMR-E100H

Back to Main


 Product Features
The DMR-E100H DVD Recorder has
80 GB hard disk inside thus recording
can be done to HD, DVD-RAM and
DVD-R.
The recording time for 4.7 GB
disc is 1 hr for XP, 2 hrs for SP, 4 hrs
for LP and 6 hrs for EP.
For 80 GB HD the recording time is
17 hrs for XP, 34 hrs for SP, 68 hrs
for LP and 106 hrs for EP.

Figure 2

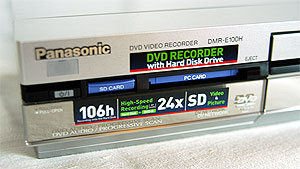

 Front Panel (Left) - Figure 2
1. On/Off Switch
2. SD Card Slot
3. PC Card Slot

Figure 3

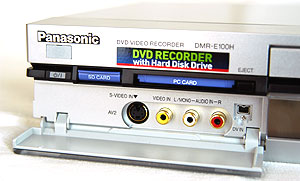

 Front Panel (Left) - Figure 3
When the lower left part is open we can see 5 input terminals.
1. S-Video Input (AV2)
2. Video In --- AV2
3. Audio In (Left Channel) --- AV2
4. Audio In (Right Channel) --- AV2
5. DV In (For Digital Camcorder)

Figure 4

 Front Panel (Left) - Figure 4
By using PC Card Adapter the recording media from
digital camera such as CF (Compact Flash ) card can
be inserted and pictures recorded in the card can be
displayed on TV and recorded on HD / DVD-RAM / DVD-R.
To eject the PC Card use the Eject Button on the right.

Figure 5

 Front Panel (Right) - Figure 5

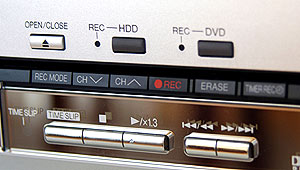

Fourteen buttons are located on the right of the front
panel to operate the commonly used functions of the
DMR-E100H.


Continue on Page 3
